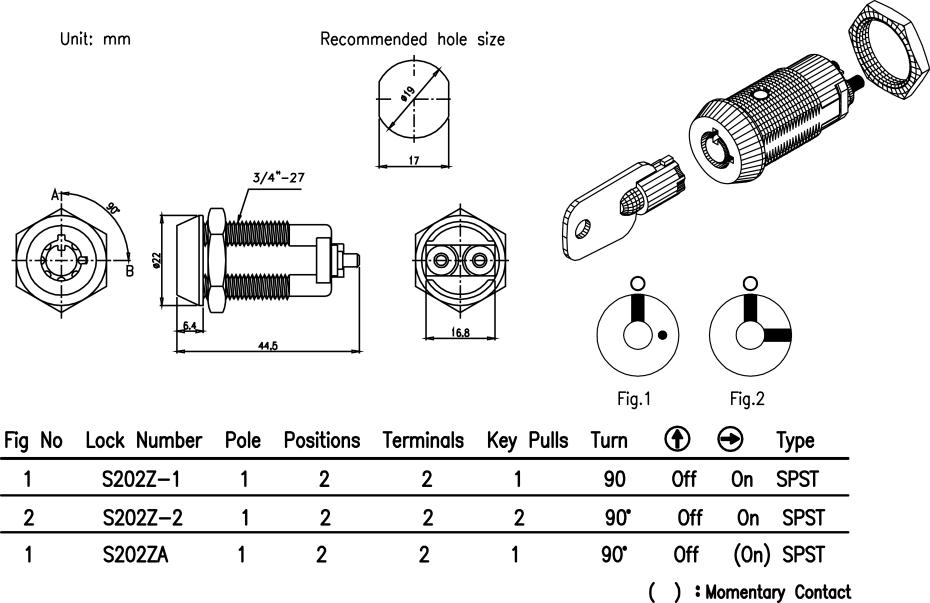

Introduction

• No. S202Z S202ZA
• Product Name S202Z S202ZA
• Description


  . Zinc alloy die cast housing and cylinder.

  . Bright chrome plated standard.

  . 7 pin tumbler mechanism.

  . Steel made tubular keys, nickel plated.

  . Silver plated contacts and terminals.

  . S202Z 2 position (off-on) 2 tubular terminals.

  . S202ZA 2 position (off-on) 2 tubular terminals,

   spring loaded for momentary contact.

  . Hex nut mounted.



  SPECIFICATION

  . Contact Rating: 4A 125VAC, 2A 250VAC.

  . Contact resistance: 50Milli - Ohms Max.

  . Insulation Resistance: 500 Meg - Ohms Min. (500VDC)

  . Dielectric Strength: 1500VAC - 1 Minute.
